Leofoto BV-20 LVC Series Tripod System Specs
Key Specs
| Camera Mounting | 1/4"-20 & 3/8"-16 Screws (Quick Release Plate: Arca-Type) |
| Head Type | Fluid Head |
| Primary Material | Carbon Fiber |
| Load Capacity | 33.1 lb / 15 kg |
| Maximum Working Height | 67.1" / 170.5 cm |
| Minimum Working Height | 15" / 38 cm |
| Closed Length | 34.4" / 87.5 cm |
| Weight | 11.5 lb / 5.2 kg |

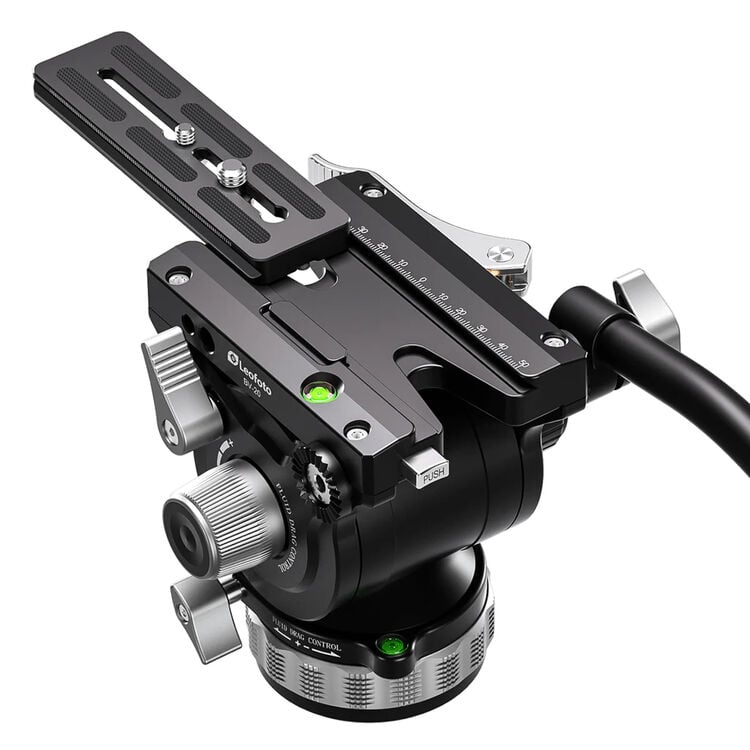

Head
| Camera Mounting | 1/4"-20 & 3/8"-16 Screws (Quick Release Plate: Arca-Type) |
| Head Type | Fluid Head |
| Base Mount | Flat Base (Thread Size Unspecified) |
| Counter Balance | No |
| Dimensions | Base Diameter: 3.0" / 75.00 mm Height: 5.7" / 145.00 mm Camera Plate: 5.1" / 130.00 mm |

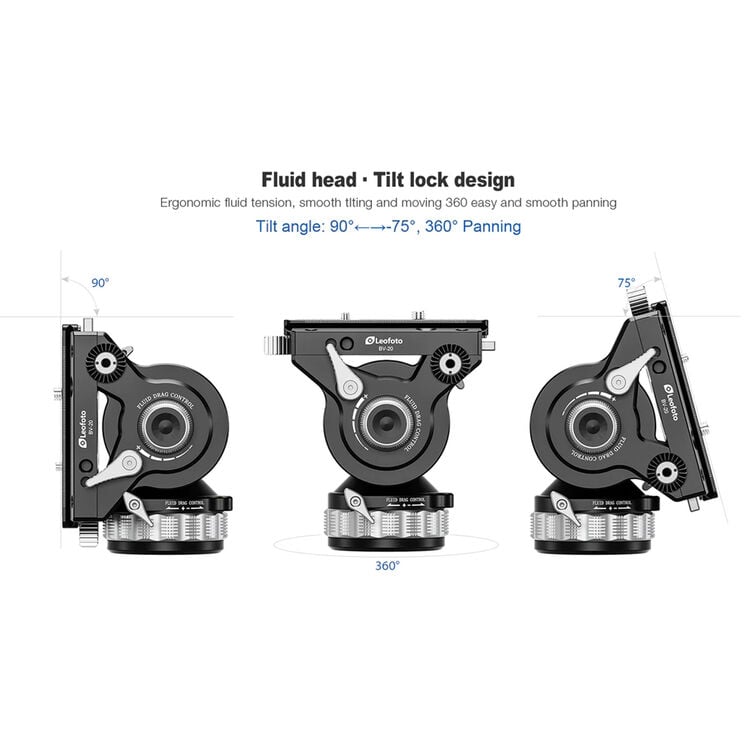

Pan & Tilt
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Vertical Tilt | +90° to -75° |
Legs
| Primary Material | Carbon Fiber |
| Leg Lock | Rotating Locking Lever |
| Leg Sections | 3 |
| Independent Leg Spread | Yes |
| Leg Positions | 3 Positions |
| Foot Features | Spiked |
General
| Load Capacity | 33.1 lb / 15 kg |
| Maximum Working Height | 67.1" / 170.5 cm |
| Minimum Working Height | 15" / 38 cm |
| Closed Length | 34.4" / 87.5 cm |
| Accessory Mounting | 2x Pan Handle Fitting |
| Bubble Level | Yes |

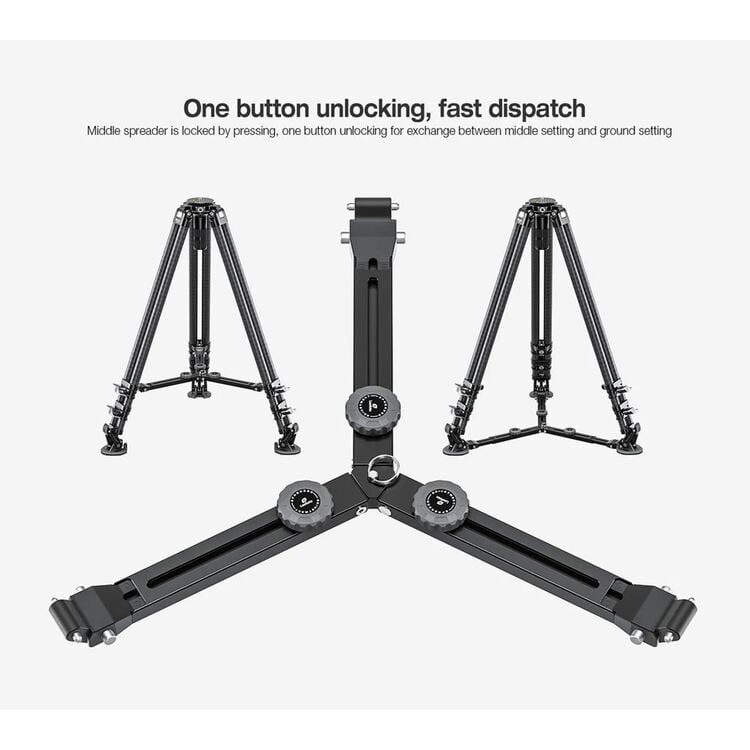

| Spreader Support | Mid-Level |
| Weight | 11.5 lb / 5.2 kg |
Packaging Info
| Package Weight | 15.12 lb |
| Box Dimensions (LxWxH) | 37 x 6.75 x 6.75" |
